Linear Grammars and Regular Expressions

(正規文法と正規表現)

4th lecture, April 29, 2022

Language Theory and Compilers

https://www.sw.it.aoyama.ac.jp/2022/Compiler/lecture4.html

Martin J. Dürst

© 2005-22 Martin J. Dürst 青山学院大学

Today's Schedule

• Last week's homework, leftovers
• Regular Grammars
• Regular Expressions
  • Formal definition
  • Conversion to an NFA
  • Conversion from an FSA
  • Practical regular expressions

Schedule for Next Few Weeks

• Friday, April 29 (Showa Day): Lectures take place, lecture 4
• Monday, May 2, 19:00: Homework deadline
• Friday, May 6: Lecture 5

Leftovers

Last Week's Homework 4

Check the versions of flex, bison, gcc, make, and m4 that you installed (no need to submit, but contact me by mail if you have a problem)

Last Week's Homework 1

Draw a state transition diagram for a finite state automaton that recognizes all inputs that (at the same time)

• Start with gf
• End with fg
• Contain an even number of h
• Contain no other symbols than f, g, and h

Last Week's Homework 2

Draw the state transition diagram for the NFA in the state transition table below

Last Week's Homework 3

Create the state transition table of the DFA that is equivalent to the NFA in homework 2 (do not rename states).

[removed]

Plan for this Lecture

• Finite state automata (FSA)
  • Deterministic finite automaton (DFA)
  • Non-deterministic finite automaton (NFA)
• Regular grammar
  • Left linear grammar
  • Right linear grammar
• Regular expression

These all are equivalent, and
define/accept regular languages

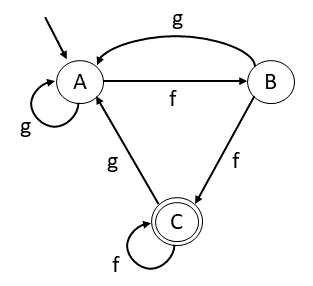

Example of Right Linear Grammar

A → fB | gA

B → gA | fC | f

C → gA | fC | f

Right Linear Grammars and FSAs

Right linear grammars and NFAs correspond
as follows (not considering ε transitions):

There is a similar correspondence for left linear grammars (imagine reading the input backwards)

From NFA to Right Linear Grammar

• Convert all states to nonterminal symbols
  (start state→start symbol)
• Convert all transitions to right linear rules
• Convert all transitions to accepting states to constant rules

From Right Linear Grammar to NFA

• Create a state for each nonterminal symbol
  (start symbol→start state)
• Convert all right linear rules to transitions
• Create a new state (e.g. named F) only used for acceptance,
  and convert all constant rules
  to transitions to this state

Linear Grammar Definitions

Right linear grammar =
right linear rules + constant rules

Left linear grammar = left linear rules + constant rules

(in both cases, a special rule S → ε is allowed)

Both left linear grammars and right linear grammars are regular grammars

(A grammar that contains both left linear rules and right linear rules is called a linear grammar. A linear grammar is not a regular grammar, but a kind of context-free grammar.)

Today's Outlook

Summary up to now:

• Finite state automata (FSA): Deterministic finite automata (DFA) and non-deterministic finite automata (NFA)
• Regular grammar: Left linear grammar and right linear grammar
• All these have the same power, generating/recognizing regular languages.

Challenge: Find a more compact representation for regular languages.

Example of Regular Expression

To find DFA and NFA in a document,

use the regular expression (D|N)FA (also written /(D|N)FA/)

(// are the delimiters for regular expressions (in Ruby, Perl, JavaScript,...))

Properties of Regular Expressions

• Denote a set of patterns or words (i.e. a language)
• Match some input
• Have a structure similar to arithmetic expressions (in general, expression ↔ 式)
• Very compact
• Widely used, very useful
• Two main variants:
  • Theoretical regular expressions
  • Practical regular expressions

Theoretical Regular Expression:
Syntax

• a: {a} (a single symbol denotes itself)
• abc: {abc} (concatenation, single word)
• a*: {ε, a, aa, aaa,...} (Kleene closure)
• a|b: {a, b} (alternative)
• (a|b): same as expression without parentheses

Examples of Regular Expressions

• Number of symbols:
  • Even: (aa)*
  • Odd: a(aa)* or (aa)*a
  • Reminder is 2 when divided by 3: aa(aaa)*
• A specific symbol sequence at the start of a word: abc(a|b|c)*
• A specific symbol sequence at the end of a word: (a|b|c)*abc
• A specific symbol sequence in the middle of a word: (a|b|c)*abc(a|b|c)*

Notation of Regular Expressions

• Only characters themselves, concatenation, alternative, and repetition are represented
• "Usual" characters represent themselves
• A small set of characters has a special role (meta-characters: |, *, (, ), ε)
• Meta-characters may need to be escaped

Formal Definition of Theoretical Regular Expressions

L(r) denotes the language defined by regular expression r.

Grammar for Theoretical Regular Expressions

• Regular expressions themselves form a language
  (set of all regular expressions)
• Grammar: R → ε, R →a, R →b,..., R →R|R, R →RR, R →R*, R →(R)
• This is not a regular language, but a context-free language
• The alphabet of a regular expression is the alphabet of the target language (e.g. a, b,...) and the meta-characters (ε, |, *, (, ))

Caution: Priority

Make sure you get priorities right!

Regular Expression to NFA: Symbols, Concatenation

The NFA for a symbol a has two states and one arrow:

• Start state
• Accepting state
• Arrow labeled a from start state to accepting state (same for ε)

The NFA for the regular expression rs
connects the accepting state of r
with the start state s
through an ε transition.

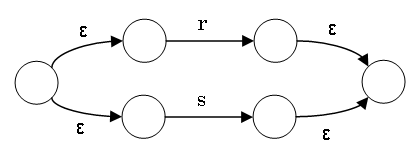

Regular Expression to NFA: Alternative

The NFA for r|s is constructed from the NFAs for r and s as follows:

The additional ε connections are necessary to clearly commit to either r or s.

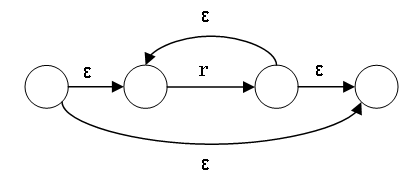

Regular Expression to NFA: Repetition

The NFA for r* is constructed as follows:

Conversion: Regular Expression to NFA

• Construct NFA bottom-up, starting with smallest subexpressions
• Each subexpression is converted to an NFA
• Each subexpression has one start state and one accepting state
• When combining subexpressions, connect start states and accepting states to form a larger NFA
• During construction:
  • Start state on the left (no incomming arrow)
  • Accepting state on the right (no double circle)
• When finished, add incomming arrow for start state and double circle for accepting state

Example of Conversion

Regular expression: a|b*c

In some cases, some of the ε transitions may be eliminated, or the NFA may otherwise be simplified.

Conversion: FSA to Regular Expression

Algorithmic conversion is possible, but complicated

General procedure:

1. Create regular expressions for getting from state A to state B directly for all pairs of states
2. Select a single state, and create all regular expressions that pass through this intermediate state
3. Repeat step 2., increasing the number of intermediate states
4. Simplify intermediate regular expressions as much as possible (they can get quite complex)

When understanding what language the FSA accepts, it is often easy for humans to create a regular expression for this language.

Applications of Regular Expressions

• Many patterns can be expressed compactly
• Clear connection between theory and applications
• Built-in (first-class objects) in many programming languages (Ruby, Javascript, Perl,...)
• Available as libraries in other programming languages (Java, C#, C, Python,...)
• Usable in many tools (e.g. plain text editors)
• Caution: Theoretical regular expressions and practical regular expressions differ in many ways

Practical Regular Expressions:
Syntax

Practical regular expressions have many additional functions and shortcut notations
(the corresponding theoretical regular expressions or simpler constructs are given in parentheses)

• .: a single arbitrary character (a|b|c|...)
• [acdfh]: character class: select a single character ((a|c|d|f|h))
• [b-f]: shortcut for continuous range in character class ((b|c|d|e|f))
• r+: one or more occurrences of r (rr*)
• r?: r or nothing (r|ε, ε cannot be used in practical regular expressions
• r{m,n}: between m and n repetitions of r (r...rr?...r?)
• \*,...: \ escapes meta-characters
• Meta-characters: |*+?()[]{}.\^$

Theoretical and Practical Regular Expressions:
Usage Differences

• Theory: match a full word; practice: match part of a string
• ^/$ match the start/end of a string or line
• The result of the match is not just yes/no, but includes the position of the match, the substring matched, the substrings before/after the match,...
• If there are multiple possible matches, the leftmost, longest match is choosen
  (leftmost is more important than longest)
• Parts of a string matching parts of a regular expression in parentheses can be assigned to variables
• Partial matches can be reused inside the regular expression

Use of Practical Regular Expressions

• Text/document search
• String replacements (single or multiple, e.g.: Ruby sub/gsub)
• Cutting strings apart (e.g. Ruby split)
• Application examples with very large regular expressions:
  • C lexical analyzer in a single regular expression
  • Fast Unicode Normalization (in pure Ruby, >100 times faster than Twitter implementation)

Notes on Practical Regular Expressions

• Most regular expression engines are more powerful than DFA/NFA/regular languages
• Most regular expression engines use backtracking
• Some regular expressions may be very slow on some input
  Example: String aⁿ, regular expression (a?)ⁿaⁿ (n=3: string: aaa, regular expression: a?a?a?aaa, really slow starting at n~25)
• This may lead to regular expression denial of service attacks
• For further analysis, see e.g. https://regex101.com/

Theoretical vs. Practical Regular Expressions

Summary of this Lecture

• Regular expressions, regular grammars, and finites state automata all
  have the same power to generate/accept regular languages
• Regular expressions are a very compact representation
• DFAs are a very efficient way to implement recognition
• Regular expressions and DFAs are very useful for lexical analysis
• Creating a DFA by hand from a regular expression is tedious
• In FSAs, the number of states is finite ⇒ there are languages that cannot be expressed, e.g. languages with corresponding pairs of parentheses


Homework Submission

Deadline: May 2, 2022 (Monday!), 19:00

Format: A4 single page (using both sides is okay; NO cover page), easily readable handwriting (NO printouts), name (kanji and kana) and student number at the top right

Where to submit: Box in front of room O-529 (building O, 5th floor)

Homework

1. Construct the state transition diagram for the NFA corresponding to the following grammar
   S → xB | yB | yC, A → xC | z | yS, B → zD | zC | xB | y, C →yA | aD | z

2. Convert the automaton defined by the following transition table to a right linear grammar

   	0	1
   →T	G	M
   *G	K	L
   H	M	G
   K	H	-
   *L	M	T
   M	L	G

3. Construct the state transition diagram for the regular expression rp|h*s
   Write down two versions:
   1. The result of the full procedure (with all ε transitions)
   2. A version that is as simple as possible
4. Bring your notebook PC with you next week (May 6).
   Make sure you can use flex, bison, gcc, make, diff, and m4 (no need to submit)

Glossary

regular expression

正規表現

minimization

最小化

partition

分割

isomorphic

同型 (同形) の

(left/right) linear rule

(左・右) 線形規則

constant rule

定数規則

(left/right) linear grammar

(左・右) 線形文法

delimiter

区切り文字

alternative

選択肢

repetition

繰返し

meta-character

メタ文字

priority

優先度

theoretical regular expressions

論理的 (な) 正規表現

practical regular expressions

実用的 (な) 正規表現

first-class object

第一級オブジェクト、ファーストクラスオブジェクト

notation(al)

表記 (上の)

arbitrary

任意

leftmost

できるだけ左
