Finite State Automata

(有限オートマトン)

Language Theory and Compilers

3rd lecture, May 2, 2025

https://www.sw.it.aoyama.ac.jp/2025/Compiler/lecture3.html

Martin J. Dürst

© 2005-25 Martin J. Dürst 青山学院大学

Today's Schedule

• Overall schedule
• Summary and homework of last lecture
• Types of grammars
• Finite state automata
• Nondeterministic finite state automata (NFA)
• Conversion from NFA to DFA

Overall Schedule

May 28 (Wednesday), 09:00~10:30 (makeup lecture)

Summary of Last Lecture

• A word over an alphabet Σ is
  a sequence of 0 or more symbols from Σ
• A language over an alphabet Σ is
  a set of words over Σ
• A grammar is a set of rewriting rules that allow to produce all words of a language (and only those) by starting from a single start symbol
• An automaton is a machine that accepts all words of a language (and only those)

Previous Homework 1

For the language L = { sg, ns, n },
list the 10 shortest words of L^* (in lexicographic order).

Solution: ε, n, nn, nnn, nns, ns, nsg, nsn, sg, sgn

Additional problem (solution voluntary):
List all words of L^* of length 4 (in lexicographic order).

Solution: nnnn, nnns, nnsg, nnsn, nsgn,
nsnn, nsns, nssg, sgnn, sgns, sgsg

Previous Homework 2

Using the grammar from the slide
"Example of Grammar and Derivation",
find 3 words produced by that grammar
(different from each other and from ccwwcc).

Give the full derivation for each word
(rule numbers and underlines not needed).

Guess and explain
what language this grammar defines.

Hint: If your guess is not simple,
maybe you have made a mistake.

Previous Homework 2 Solution

[Grammar: S → cwc (1), S → cPTc (2), R → QPTc (3), T → QPc (4), PQ → QP (5), cQ → cc (6), Pc → wc (7), Pw → ww (8)]

Solution example (partial):

S → cwc

S →cPTc →cPQPTcc →cPQPQPccc →cQPPQPccc →cQPQPPccc →cQQPPPccc →cQQPPwccc →cQQPwwccc →cQQwwwccc →ccQwwwccc →cccwwwccc

S → ... → ccccwwwwcccc

Guess: The grammar defines the language with all the words of the form cwc, ccwwcc, cccwwwccc,...
i.e. cⁿwⁿcⁿ (n≥1).

Previous Homework 2 (Additional Problem)

Additional problem (solution voluntary): Prove or justify your guess

Example solution summary: The first derivation step will eliminate S. T will only appear once in any intermediate sequence, and will later disappear. After using (3) x times (x≥0) and using (4) one time, there will be a single c on the left, c^x+2 on the right, and a sequence of x+1 Qs and x+2 Ps in the middle (c(PQ)^x+1Pc^x+2 ). Using (5), all Qs can be moved to the left, and all Ps to the right, giving cQ^x+1P^x+2c^x+2. Then using (7) and (8), the Ps are converted to ws, and using (6), the Qs are converted to cs, resulting c^x+2w^x+2c^x+2. This is cⁿwⁿcⁿ, with n=x+2≥2. The case of n=1 is covered separately by rewriting rule (1).

Today's Schedule

• Overall schedule
• Summary and homework of last lecture
• Types of grammars
• Finite state automata
• Nondeterministic finite state automata
• Conversion from NFA to DFA

Types of Grammars

Grammar types are distinguished
by restrictions on rewriting rules:
(α, β, γ are sequences of (non)terminals)

Type 0. No restrictions: Phrase structure grammar, (Chomsky) type 0 grammar

Type 1. αAβ → αγβ, where |α|≧0, |β|≧0, |γ|≧1:
Context-sensitive grammar (α and β are the context),
(Chomsky) type 1 grammar

Type 2. A → γ, where |γ|≧1:
Context-free grammar, (Chomsky) type 2 grammar

Type 3. A → aB or A→ a (alternative: A → Ba or A→ a):
Regular grammar, (Chomsky) type 3 grammar

(for all types, S → ε is also allowed)

Remarks on Homework 2

• All rules except rule (5) are allowed for context-sensitive grammars (type 1)
• Rule (5) (PQ → QP) is only allowed in a phrase structure grammar (type 0)
• Rule (5) can be replaced by the four rules
  PQ → XQ, XQ → XY, XY → QY, QY → QP.
• All these rules are context-sensitive
  ⇒ this grammar can be made context-sensitive (type 1)
• Languages such as aⁿbⁿaⁿ can be created
  with context-sensitive grammars,
  but not with context-free grammars.
  ⇒ this language is a context-sensitive language
  ⇒ this language is not a context-free language

Language Type Overview

Regular languages are used for lexical analysis.

Language Type Overview

Regular languages are used for lexical analysis.

Today's Schedule

• Overall schedule
• Summary and homework of last lecture
• Types of grammars
• Finite state automata
• Nondeterministic finite state automata
• Conversion from NFA to DFA

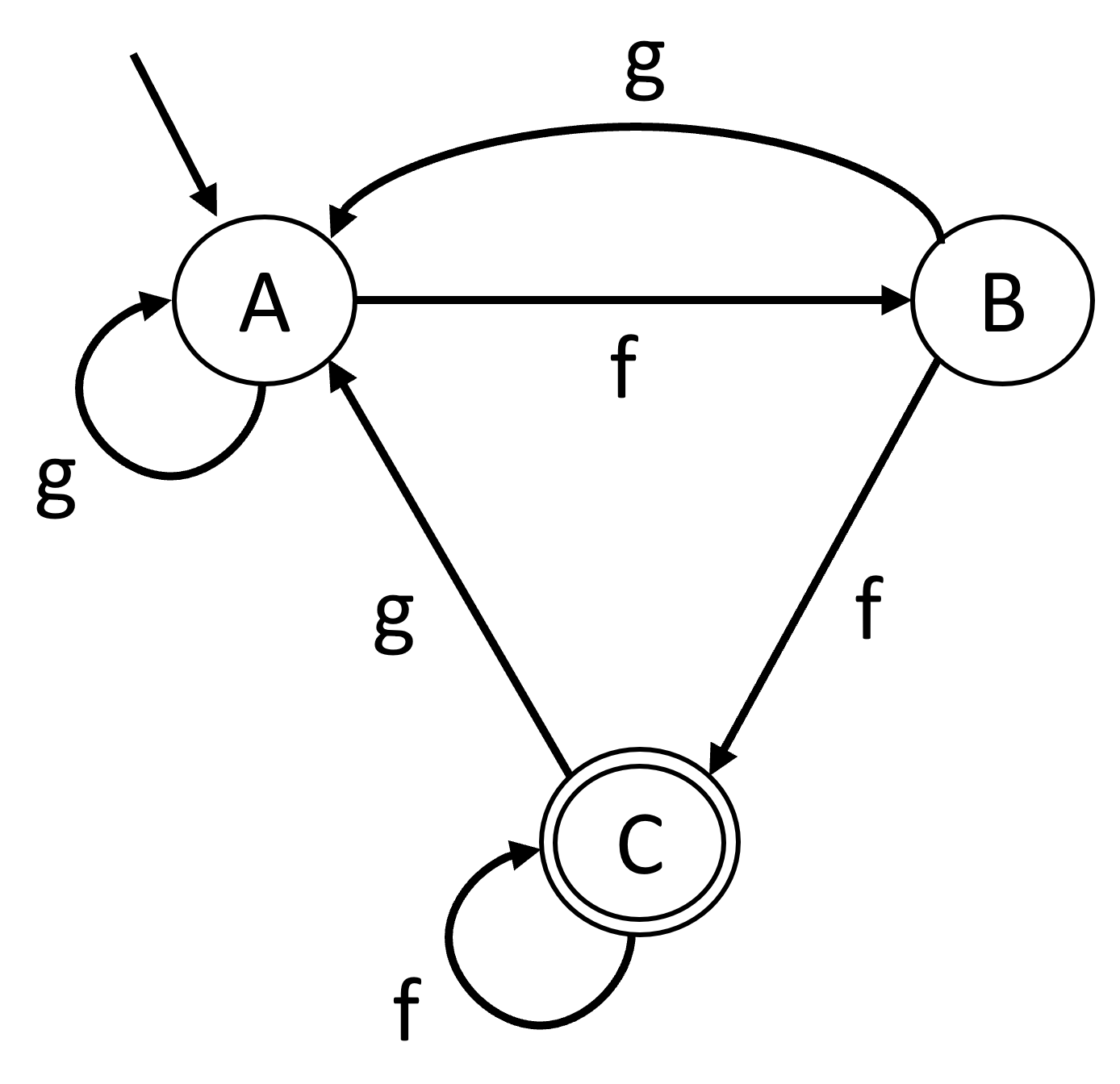

Finite State Automaton Example

(automaton (αὐτόματον) is Greek; plural: automata)

Finite state automata (FSA) are often represented with a state transition diagram

Circles:
states (finite number!)

Arrow from outside:
initial state

Double circles:
accepting state(s)

Arrows with labels:
transitions

Workings of a Finite State Automaton

• Start with initial state
• Repeatedly read one symbol of the input word,
  and transition to the next state
  along the arrow with the corresponding label
• If the automaton is in an accepting state at the end of the word, the word is accepted
• If the automaton is not in an accepting state at the end of the word, the word is not accepted
• If there is no transition with the right symbol, the word is not accepted
• The number of states is finite
  (i.e. there is only limited memory)

Questions

Does the automaton accept ffgfg ? No!

Does the automaton accept fgfff ? Yes!

What language does the automaton accept?
Any sequence of f and g ending with 2 or more fs.

Examples of Finite State Automata

• Accepting only a word with a single specific symbol
• Accepting words where the number of symbols is odd, or even, or when divided by 3, the reminder is 2,...
• Accepting words with a fixed sequence of symbols at the start
• Accepting words with a fixed sequence of symbols at the end
• Accepting words with a fixed sequence of symbols somewhere in the middle
• Accepting words meeting more than one condition at the same time
• Accepting words meeting more than one condition, one after the other
• Accepting words meeting at least one of several conditions

State Transition Tables

Finite state automata can be represented with a state transition table.

State transition table for our example:

Leftmost column: state

Top row: input symbol

→: start state
(first state if not otherwise indicated)

*: accepting state(s)

Table contents: state after transition

Formal Definition of FSAs

A finite state automaton is a quintuple (Q, Σ, δ, q₀, F):

• A finite set of states Q
  (circles in diagram; leftmost column in table)
• A finite set of input symbols Σ
  (arrow labels; top row)
• A state transition function δ
  (arrows with labels; contents of table)
• An initial state (start state) q₀ ∈ Q
  (circle with arrow from outside; state with arrow)
• A finite set of accepting (final) states F ⊆ Q
  (double circles; states with asterisks)

Today's Schedule

• Overall schedule
• Summary and homework of last lecture
• Types of grammars
• Finite state automata
• Nondeterministic finite state automata
• Conversion from NFA to DFA

Nondeterministic Finite Automata

• An FSA where there is always at most one transition for each input is called a deterministic finite automaton (or DFA)
• Other FSAs are called nondeterministic finite automata (or NFAs)

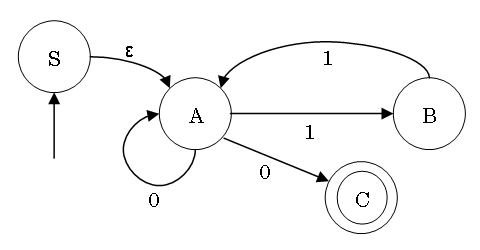

Example of NFA

How an NFA Works

• The automaton may be in multiple states (at the same time)
• All transitions for an input are
  executed simultaneously, from all current states
• Where there are no transitions,
  a state occupation will disappear
• At the end of the input, the word is accepted
  if at least one of the occupied states
  is in an accepting state

ε Transition

(epsilon transition)

• In NFAs, there may also be some ε transitions
• ε transitions are executed "for free",
  i.e. without any corresponding input symbol
• ε transitions are executed
  immediately before starting, and
  immediately after the "ordinary" transitions
• ε transitions may be executed
  in parallel and in succession
• ε transitions increase
  the set of occupied states (rather than moving)
• Executing all possible ε transitions
  is called ε closure

Comparing DFAs and NFAs

(there are also NFAs without ε transitions)

Equivalence of DFA and NFA

• NFAs look more complex and powerful than DFAs
• DFAs seem simpler to implement than NFAs
• Question: Are there languages that can be recognized by NFAs but not by DFAs?
• Equivalent question: Is it possible to convert
  any NFA to an equivalent DFA?

Today's Schedule

• Overall schedule
• Summary and homework of last lecture
• Types of grammars
• Finite state automata
• Nondeterministic finite state automata
• Conversion from NFA to DFA

Example of Conversion
from NFA to DFA

Conversion from NFA to DFA:
Algorithm Principle

• Set of occupied states of NFA ⇒ state in the DFA
• ε closure of start state of NFA
  ⇒ start state of DFA
• Set of states of NFA with accepting state(s)
  ⇒ accepting state of DFA

Summary: Set of States ⇒ State

Conversion from NFA to DFA:
Steps

1. Create a transition table for the DFA,
   starting with the set of start states

2. For each set of states and each input, calculate the set of states that can be reached
3. If there is a new set of states, copy it from the table contents to the leftmost column, and continue at 2.
4. Label all sets of states that contain an accepting state of the NFA as accepting states of the DNA
5. (not necessary) Rename sets of states with new labels

Conversion from NFA to DFA:
Conclusions

• All NFAs can be converted to equivalent DFAs
• All DFAs are (simple) NFAs
• Therefore, DFAs and NFAs
  have equivalent recognition power
• Implementing DFAs is very simple,
  but the size of the state transition table may grow
  (worst case: n → 2ⁿ-1 (number of non-empty subsets of the set of all states); most cases: n → ~2n)

Minimization of DFAs

Task: Create the smallest DFA equivalent to a given DFA.

Overall idea: work backwards

1. Separate states into two sets, accepting states and non-accepting states
2. For each state, check which other states are reached for each input symbol
3. Partition each set of states into sets that can reach the same set with the same input symobls
4. Repeat 2. and 3. until there is no further change

Purpose of minimization:

• Efficient (minimum memory) implementation
• Deciding whether two FSAs are equivalent
  (they are equivalent if their minimized DFAs are isomorphic)

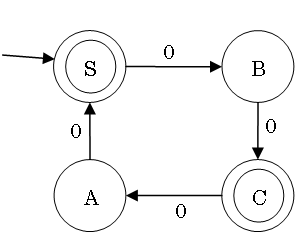

Example of DFA Minimization

Efficient Implementation of a DFA

/* state transition table */
State   next_state[state_count][symbol_count];
Boolean final_state[state_count];         /* final state? */
State   current_state = start_state;
Symbol  next_symbol;

while ((next_symbol=getchar()) != EOF &&  /* end of input */
         current_state != no_state)       /* dead end */
    current_state = next_state[current_state][next_symbol];
if (final_state[current_state])
    printf("Input accepted!");
else
    printf("Input not accepted!");

Today's Summary

• Finite State Automata (FSAs) are the tool to accept/reject words of regular languages
• Both Deterministic Finite Automata (DFAs) and Nondeterministic Finite Automata (NFAs) recognize the same (class of) languages
• DFAs allow efficient inplementation of recognition of regular languages
• This can be used for lexical analysis

Challenge (for next lecture): DFAs and NFAs have complex descriptions. Are there simpler descriptions of regular languages?

Previous Homework 3:
Cygwin Download and Installation

(no need to submit, but contact me by e-mail
if you have any problems)

Install cygwin on your notebook computer
(detailled instructions with images).

Make sure that you select/install gcc (gcc-core), flex, bison, diff (diffutils), make, and m4 .

If you have an earlier cygwin installation,
make sure to check/update.

Checking flex, bison, gcc,... Installation

Start up a Cygwin Terminal session.

Check each software with the following commands:

• flex -V (V is upper case)
• bison -V (V is upper case)
• gcc -v (v is lower case)
• diff -v (v is lower case)
• make -v (v is lower case)
• m4 --version

Homework Submission

Deadline: May 7, 2025 (Wednesday), 18:40

Format: A4 single page (using both sides is okay; NO cover page, portrait orientation), easily readable handwriting (NO printouts), name (kanji and kana) and student number at the top right

Where to submit: Box in front of room O-529 (building O, 5th floor)

Homework

1. Draw a state transition diagram for a finite state automaton that recognizes all inputs that (at the same time)

   • Start with qt
   • End with tq
   • Contain an even number of h
   • Contain no other symbols than q, t, and h
2. Draw the state transition diagram for the NFA in the state transition table below

   	ε	O	l
   →S	{P}	{Q}	{E}
   E	{}	{P}	{P, T}
   P	{}	{T}	{}
   *Q	{P}	{}	{S}
   T	{}	{E, P}	{Q}

3. Create the state transition table of the DFA that is equivalent to the NFA in homework 2 (do not rename states).
4. Check the versions of flex, bison, gcc, diff, make, and m4 that you installed (see slide 4, no need to submit, but contact me by mail if you have a problem)

Glossary

Finite state automaton (FSA)

有限オートマトン

deterministic finite automaton (DFA)

決定性有限オートマトン

Non-deterministic finite automaton (NFA)

非決定性有限オートマトン

regular grammar

正規文法

state transition diagram

状態遷移図

transition

遷移

initial/start state

初期状態

accepting/final state

受理状態

accept

受理する

finite

有限

state transition table

状態遷移表

state transition function

動作関数

simultaneous(ly)

同時 (な・に)

ε transition

ε 遷移

ε closure

ε 閉包

equivalence

同等性

renaming (of states)

状態の書換え
